Solid fuel boiler Hi-Therm GRIFON

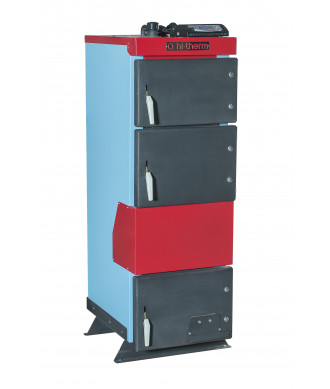

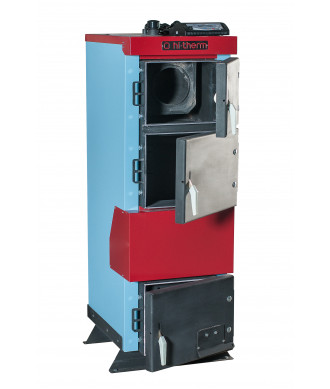

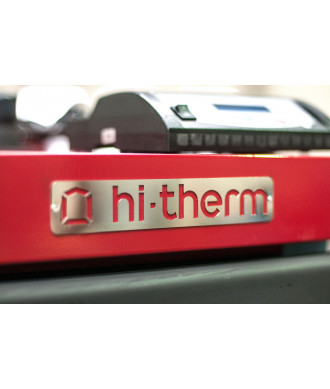

Photo: Solid fuel boiler Hi-Therm GRIFON Photo: Solid fuel boiler Hi-Therm GRIFON Photo: Solid fuel boiler Hi-Therm GRIFON
  • Photo: Solid fuel boiler Hi-Therm GRIFON
  • Photo: Solid fuel boiler Hi-Therm GRIFON
  • Photo: Solid fuel boiler Hi-Therm GRIFON

Solid fuel boiler Hi-Therm GRIFON

Model: GRIFON

Hi-Therm GRIFON is a solid fuel boiler for water-based heating systems in residential and utility buildings.

  • 24 kW nominal output and 82% efficiency.
  • Designed for coal, peat, wood and other solid fuels.
  • Suitable for open and closed heating systems with natural or forced circulation.
  • 5 mm steel construction and 75 dm3 firebox volume.
  • Practical service access for everyday operation.
can view from all sides
Watch product video
Technical characteristics of the water heater
Technical specifications of the boiler
Boiler water volume, l
35
Boiler weight, kg
270
Efficiency, %
82
Firebox volume, dm3
75
Flue outlet diameter, mm
159
Maximum operating temperature, °C
95
Metal thickness, mm
5
Nominal chimney draft, Pa
12 ± 2
Power range, kW
24

GRIFON is intended for projects where autonomous solid fuel heating is required.

Correct chimney draft, system volume and safety components must be selected during heating system design.

Technical specifications

Power24 kW
Efficiency82%
Dimensions450x700x1350 mm
Boiler water volume35 l
Maximum operating temperature95 °C
Nominal chimney draft12 ± 2 Pa
Chimney diameter159 mm
Metal thickness5 mm
Boiler weight270 kg
Firebox volume75 dm3
