Hi-Therm PP-R elbow 45°
Photo: Hi-Therm PP-R elbow 45° Photo: Hi-Therm PP-R elbow 45°
  • Photo: Hi-Therm PP-R elbow 45°
  • Photo: Hi-Therm PP-R elbow 45°

Hi-Therm PP-R elbow 45°

Hi-Therm PP-R elbow 45° turns a PP-R pipeline by 45 degrees for smoother route changes.

  • Available sizes: 20, 25, 32, 40, 50, 63, 75, 90, 110 mm
  • Design: one-piece PP-R moulded fitting
  • Installation: socket fusion welding with PP-R pipe
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R elbow 45°
Material
PP-R
Size / diameter
20, 25, 32, 40, 50, 63, 75, 90, 110 mm
System use
joint, turn, branch or transition in PP-R pressure piping
Construction
one-piece PP-R moulded fitting
Working medium
cold water, hot water and water-based heating medium
Application
turns a PP-R pipeline by 45 degrees for smoother route changes.
Connection / installation
socket fusion welding with PP-R pipe
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
20, 25, 32, 40, 50, 63, 75, 90, 110 mm
Warranty
10 years
Article numbers
H11202045, H11202545, H11203245, H11204045, H11205045, H11206345, H11207545, H11209045, H11211045
Weight / packaging
weight 0,012-0,720 kg; package 1-500 pcs

Technical specifications and dimensions

Hi-Therm PP-R elbow 45° - turns a PP-R pipeline by 45 degrees for smoother route changes.

ParameterValue
Product typePP-R elbow 45°
MaterialPP-R
Size / diameter20, 25, 32, 40, 50, 63, 75, 90, 110 mm
System usejoint, turn, branch or transition in PP-R pressure piping
Constructionone-piece PP-R moulded fitting
Working mediumcold water, hot water and water-based heating medium
Applicationturns a PP-R pipeline by 45 degrees for smoother route changes.
Connection / installationsocket fusion welding with PP-R pipe
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

Sizes and article numbers

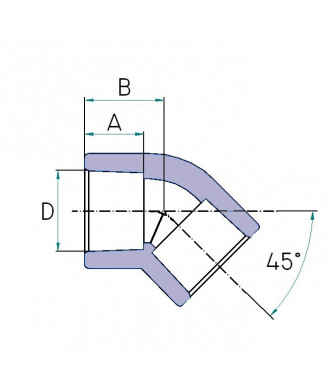

Ø (D) [mm]A [mm]B [mm]Weight [kg]Package I [pcs]Package II [pcs]Article
2014,519,50,01250500H11202045
2516,022,00,02250200H11202545
3218,125,60,03620100H11203245
4020,530,50,0631060H11204045
5023,537,00,114545H11205045
6327,444,00,210510H11206345
7531,050,00,311210H11207545
9035,556,00,43015H11209045
11041,563,50,72015H11211045

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
