Hi-Therm PP-R elbow 90° turns a PP-R pipeline by 90 degrees.
Hi-Therm PP-R elbow 90° - turns a PP-R pipeline by 90 degrees.
| Parameter | Value |
|---|---|
| Product type | PP-R elbow 90° |
| Material | PP-R |
| Size / diameter | 20, 25, 32, 40, 50, 63, 75, 90, 110 mm |
| System use | joint, turn, branch or transition in PP-R pressure piping |
| Construction | one-piece PP-R moulded fitting |
| Working medium | cold water, hot water and water-based heating medium |
| Application | turns a PP-R pipeline by 90 degrees. |
| Connection / installation | socket fusion welding with PP-R pipe |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

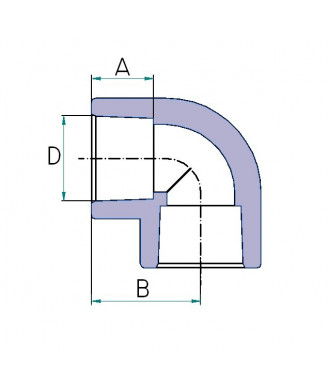

| Ø (D) [mm] | A [mm] | B [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20 | 14,5 | 25,5 | 0,014 | 50 | 400 | H11102090 |
| 25 | 16,0 | 29,5 | 0,026 | 50 | 200 | H11102590 |
| 32 | 18,1 | 35,1 | 0,043 | 20 | 100 | H11103290 |
| 40 | 20,5 | 41,5 | 0,089 | 10 | 60 | H11104090 |
| 50 | 23,5 | 50,0 | 0,139 | 5 | 45 | H11105090 |
| 63 | 27,4 | 61,0 | 0,270 | 4 | 20 | H11106390 |
| 75 | 31,0 | 70,0 | 0,391 | 2 | 10 | H11107590 |
| 90 | 35,5 | 82,0 | 0,730 | 1 | 5 | H11109090 |
| 110 | 41,5 | 98,0 | 1,190 | 1 | 4 | H11111090 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
