Hi-Therm PP-R ball valve quickly shuts off flow in a PP-R water or heating line.
Hi-Therm PP-R ball valve - quickly shuts off flow in a PP-R water or heating line.
| Parameter | Value |
|---|---|
| Product type | PP-R ball valve |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20, 25, 32, 40, 50, 63 mm |
| System use | manual shut-off or regulation in PP-R water and heating lines |
| Construction | PP-R valve body with shut-off/regulation mechanism |
| Working medium | cold water, hot water and water-based heating medium |
| Application | quickly shuts off flow in a PP-R water or heating line. |
| Connection / installation | socket fusion welding into PP-R line; manual shut-off/regulation element |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

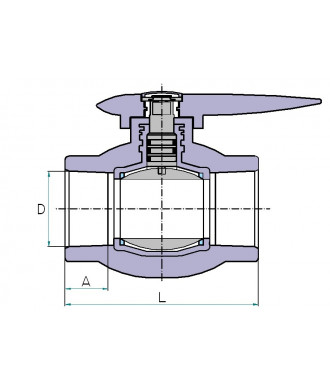

| Ø (D) [mm] | A [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20 | 14,5 | 63 | 0,110 | 10 | 50 | H302020 |
| 25 | 16,0 | 70 | 0,152 | 10 | 50 | H302025 |
| 32 | 18,1 | 85 | 0,316 | 5 | 25 | H302032 |
| 40 | 20,5 | 100 | 0,532 | 5 | 20 | H302040 |
| 50 | 23,5 | 120 | 0,995 | 3 | 15 | H302050 |
| 63 | 27,5 | 138 | 1,350 | 2 | 10 | H302063 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
