Hi-Therm PP-R coupling with union nut connects PP-R pipe to service points with a union nut for removable installation.
Hi-Therm PP-R coupling with union nut - connects PP-R pipe to service points with a union nut for removable installation.
| Parameter | Value |
|---|---|
| Product type | PP-R coupling with union nut |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 25x3/4", 32x1" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | connects PP-R pipe to service points with a union nut for removable installation. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side; detachable union connection |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

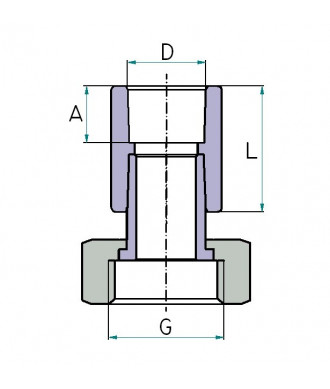

| Ø (D×G) [mm] | L [mm] | L1 [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20x1/2" | 60,0 | 35,0 | 0,085 | 1 | 100 | H402020 |
| 25x3/4" | 64,0 | 42,0 | 0,136 | 1 | 80 | H402025 |
| 32x1" | 71,5 | 46,5 | 0,219 | 1 | 60 | H402032 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
