PP-R spojka Hi-Therm connects two PP-R pipe sections of the same diameter in a straight line.
PP-R spojka Hi-Therm - connects two PP-R pipe sections of the same diameter in a straight line.
| Parameter | Value |
|---|---|
| Product type | PP-R spojka |
| Material | PP-R |
| Size / diameter | 20, 25, 32, 40, 50, 63, 75, 90, 110 mm |
| System use | joint, turn, branch or transition in PP-R pressure piping |
| Construction | one-piece PP-R moulded fitting |
| Working medium | cold water, hot water and water-based heating medium |
| Application | connects two PP-R pipe sections of the same diameter in a straight line. |
| Connection / installation | socket fusion welding with PP-R pipe |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

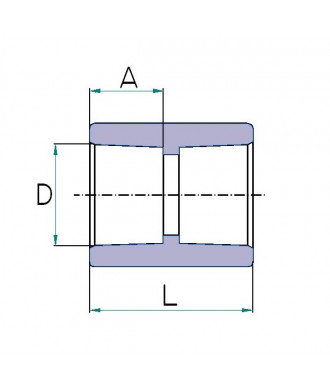

| Ø (D) [mm] | A [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20 | 14,5 | 32,0 | 0,010 | 50 | 600 | H119020 |
| 25 | 16,0 | 35,0 | 0,016 | 50 | 300 | H119025 |
| 32 | 18,1 | 39,0 | 0,029 | 20 | 200 | H119032 |
| 40 | 20,5 | 44,0 | 0,051 | 20 | 120 | H119040 |
| 50 | 23,5 | 50,0 | 0,083 | 5 | 75 | H119050 |
| 63 | 27,4 | 58,0 | 0,141 | 6 | 42 | H119063 |
| 75 | 31,0 | 68,0 | 0,210 | 5 | 30 | H119075 |
| 90 | 35,5 | 78,0 | 0,345 | 1 | 15 | H119090 |
| 110 | 41,5 | 88,0 | 0,598 | 1 | 10 | H119110 |
I and II indicate packaging levels.
The coupling is selected by pipe diameter and installed by socket fusion welding. The exact operating conditions must match the parameters of the selected Hi-Therm PP-R pipe.
