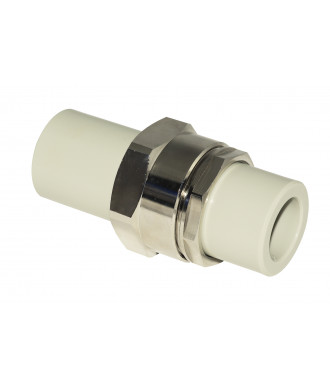

Hi-Therm PP-R detachable union creates a detachable PP-R connection for serviceable pipeline sections.
Hi-Therm PP-R detachable union - creates a detachable PP-R connection for serviceable pipeline sections.
| Parameter | Value |
|---|---|
| Product type | PP-R detachable union |
| Material | PP-R |
| Size / diameter | 20, 25, 32, 40 mm |
| System use | joint, turn, branch or transition in PP-R pressure piping |
| Construction | one-piece PP-R moulded fitting |
| Working medium | cold water, hot water and water-based heating medium |
| Application | creates a detachable PP-R connection for serviceable pipeline sections. |
| Connection / installation | socket fusion welding with PP-R pipe; detachable union connection |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

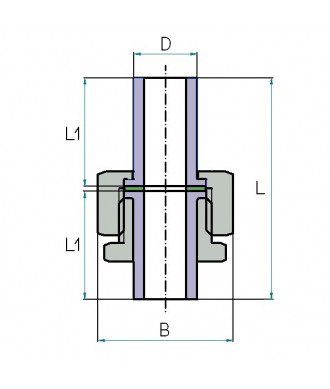

| Ø (D) [mm] | B [mm] | L [mm] | L1 [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20 | 30 | 71,5 | 35,0 | 0,076 | 1 | 384 | H401020 |
| 25 | 38 | 85,5 | 42,0 | 0,140 | 1 | 240 | H401025 |
| 32 | 46 | 94,5 | 46,5 | 0,216 | 1 | 120 | H401032 |
| 40 | 52 | 112,0 | 55,0 | 0,293 | 1 | 72 | H401040 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
