Hi-Therm PP-R double wall plate elbow for mixer

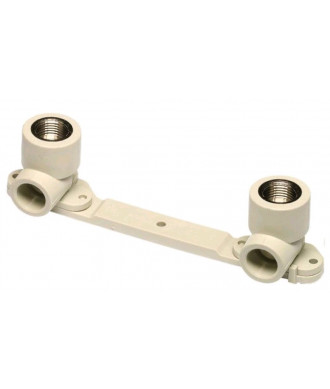

Photo: Hi-Therm PP-R double wall plate elbow for mixer Photo: Hi-Therm PP-R double wall plate elbow for mixer
  • Photo: Hi-Therm PP-R double wall plate elbow for mixer
  • Photo: Hi-Therm PP-R double wall plate elbow for mixer

Hi-Therm PP-R double wall plate elbow for mixer

Hi-Therm PP-R double wall plate elbow for mixer sets two fixed wall outlet points for mixer installation.

  • Available sizes: 20x1/2", 25x1/2"
  • Design: PP-R wall-mounted fitting with fixed outlet geometry
  • Installation: socket fusion welding with PP-R pipe
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R double wall plate elbow for mixer
Material
PP-R
Size / diameter
20x1/2", 25x1/2"
System use
wall outlet points for sanitary equipment in PP-R systems
Construction
PP-R wall-mounted fitting with fixed outlet geometry
Working medium
cold water, hot water and water-based heating medium
Application
sets two fixed wall outlet points for mixer installation.
Connection / installation
socket fusion welding with PP-R pipe
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
20x1/2", 25x1/2"
Warranty
10 years
Article numbers
H21112020, H21112520
Weight / packaging
weight 0,140-0,238 kg; package 1-50 pcs

Technical specifications and dimensions

Hi-Therm PP-R double wall plate elbow for mixer - sets two fixed wall outlet points for mixer installation.

ParameterValue
Product typePP-R double wall plate elbow for mixer
MaterialPP-R
Size / diameter20x1/2", 25x1/2"
System usewall outlet points for sanitary equipment in PP-R systems
ConstructionPP-R wall-mounted fitting with fixed outlet geometry
Working mediumcold water, hot water and water-based heating medium
Applicationsets two fixed wall outlet points for mixer installation.
Connection / installationsocket fusion welding with PP-R pipe
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

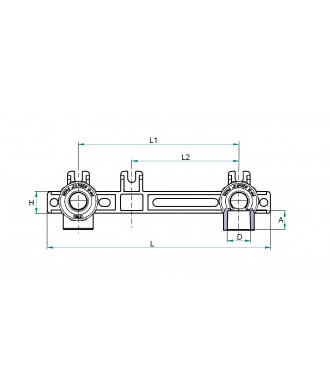

Sizes and article numbers

Ø (D×G) [mm]A [mm]L [mm]Weight [kg]Package I [pcs]Package II [pcs]Article
20x1/2"151500,1401050H21112020
25x1/2"151500,238145H21112520

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
