Hi-Therm PP-R elbow 90° with male metal thread turns PP-R pipe by 90° and transitions to male metal thread.
Hi-Therm PP-R elbow 90° with male metal thread - turns PP-R pipe by 90° and transitions to male metal thread.
| Parameter | Value |
|---|---|
| Product type | PP-R elbow 90° with male metal thread |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 20x3/4", 25x1/2", 25x3/4", 32x3/4", 32x1" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | turns PP-R pipe by 90° and transitions to male metal thread. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

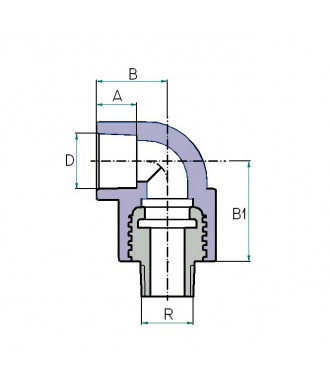

| Ø (D×G) [mm] | A [mm] | B [mm] | B1 [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20x1/2" | 14,5 | 25,5 | 36 | 0,053 | 10 | 100 | H20502020 |
| 20x3/4" | 14,5 | 30,0 | 39 | 0,095 | 10 | 100 | H20502025 |
| 25x1/2" | 16,0 | 30,0 | 39 | 0,064 | 10 | 100 | H20502520 |
| 25x3/4" | 16,0 | 30,0 | 39 | 0,100 | 10 | 50 | H20502525 |
| 32x3/4" | 18,1 | 34,0 | 46 | 0,126 | 5 | 40 | H20503225 |
| 32x1" | 18,1 | 36,0 | 49 | 0,217 | 5 | 40 | H20503232 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
