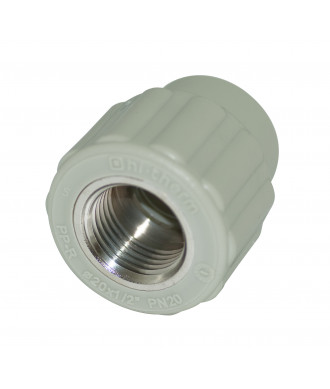

Hi-Therm PP-R female threaded adaptor transitions from PP-R pipe to a female metal thread.
Hi-Therm PP-R female threaded adaptor - transitions from PP-R pipe to a female metal thread.
| Parameter | Value |
|---|---|
| Product type | PP-R female threaded adaptor |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 20x3/4", 25x1/2", 25x3/4", 32x1/2", 32x3/4", 32x1", 32x1"OK, 40x5/4", 50x6/4", 63x2" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | transitions from PP-R pipe to a female metal thread. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

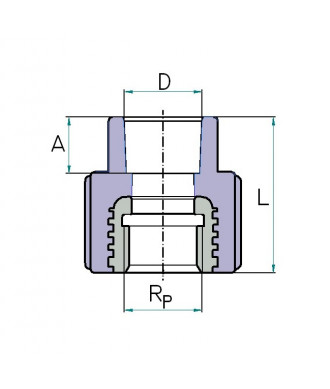

| Ø (D×G) [mm] | A [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20x1/2" | 14,5 | 38,0 | 0,047 | 20 | 100 | H20202020 |
| 20x3/4" | 14,5 | 43,0 | 0,075 | 20 | 100 | H20202025 |
| 25x1/2" | 16,0 | 43,0 | 0,053 | 20 | 100 | H20202520 |
| 25x3/4" | 16,0 | 43,0 | 0,085 | 10 | 100 | H20202525 |
| 32x1/2" | 18,1 | 43,0 | 0,063 | 10 | 100 | H20203220 |
| 32x3/4" | 18,1 | 46,0 | 0,089 | 10 | 100 | H20203225 |
| 32x1" | 18,1 | 50,0 | 0,112 | 5 | 50 | H20203232 |
| 32x1"OK | 18,1 | 60,0 | 0,193 | 5 | 50 | H20203232OK |
| 40x5/4" | 20,5 | 63,0 | 0,232 | 5 | 25 | H20204040 |
| 50x6/4" | 23,5 | 68,5 | 0,340 | 5 | 25 | H20205050 |
| 63x2" | 27,4 | 75,5 | 0,530 | 2 | 10 | H20206363 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
