Hi-Therm PP-R filter
Photo: Hi-Therm PP-R filter Photo: Hi-Therm PP-R filter
  • Photo: Hi-Therm PP-R filter
  • Photo: Hi-Therm PP-R filter

Hi-Therm PP-R filter

Hi-Therm PP-R filter filters mechanical impurities in PP-R water distribution lines.

  • Available sizes: 20, 25, 32 mm
  • Design: one-piece PP-R moulded fitting
  • Installation: socket fusion welding with PP-R pipe
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R filter
Material
PP-R
Size / diameter
20, 25, 32 mm
System use
joint, turn, branch or transition in PP-R pressure piping
Construction
one-piece PP-R moulded fitting
Working medium
cold water, hot water and water-based heating medium
Application
filters mechanical impurities in PP-R water distribution lines.
Connection / installation
socket fusion welding with PP-R pipe
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
20, 25, 32 mm
Warranty
10 years
Article numbers
H300020, H300025, H300032
Weight / packaging
weight 0,127-0,146 kg; package 5-50 pcs

Technical specifications and dimensions

Hi-Therm PP-R filter - filters mechanical impurities in PP-R water distribution lines.

ParameterValue
Product typePP-R filter
MaterialPP-R
Size / diameter20, 25, 32 mm
System usejoint, turn, branch or transition in PP-R pressure piping
Constructionone-piece PP-R moulded fitting
Working mediumcold water, hot water and water-based heating medium
Applicationfilters mechanical impurities in PP-R water distribution lines.
Connection / installationsocket fusion welding with PP-R pipe
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

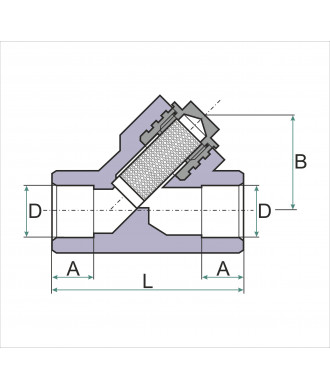

Sizes and article numbers

Ø (D) [mm]A [mm]B [mm]L [mm]Weight [kg]Package I [pcs]Package II [pcs]Article
2015,051,5760,1271050H300020
2516,049,0800,1341050H300025
3220,053,0830,146525H300032

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
