PRODUCT CATALOG
Pipes and fittings
Polypropylene systems

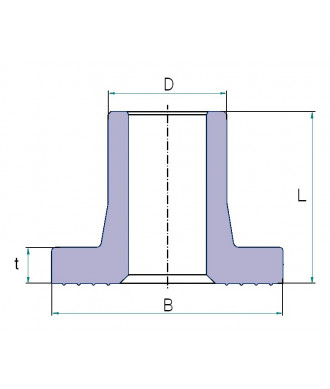

Hi-Therm PP-R flange adaptor
Photo: Hi-Therm PP-R flange adaptor Photo: Hi-Therm PP-R flange adaptor
  • Photo: Hi-Therm PP-R flange adaptor
  • Photo: Hi-Therm PP-R flange adaptor

Hi-Therm PP-R flange adaptor

Hi-Therm PP-R flange adaptor forms a transition from a welded PP-R pipeline to a flange connection.

  • Application: detachable flanged connection in PP-R pipeline sections
  • Design: one-piece PP-R moulded fitting
  • Installation: socket fusion welding with PP-R pipe
Watch product video
Pipe and fitting specifications
Product type
PP-R flange adaptor
Material
PP-R
System use
detachable flanged connection in PP-R pipeline sections
Construction
one-piece PP-R moulded fitting
Working medium
cold water, hot water and water-based heating medium
Application
forms a transition from a welded PP-R pipeline to a flange connection.
Connection / installation
socket fusion welding with PP-R pipe
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty
10 years

Technical specifications and dimensions

Hi-Therm PP-R flange adaptor - forms a transition from a welded PP-R pipeline to a flange connection.

ParameterValue
Product typePP-R flange adaptor
MaterialPP-R
System usedetachable flanged connection in PP-R pipeline sections
Constructionone-piece PP-R moulded fitting
Working mediumcold water, hot water and water-based heating medium
Applicationforms a transition from a welded PP-R pipeline to a flange connection.
Connection / installationsocket fusion welding with PP-R pipe
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
