Hi-Therm PP-R inline valve manually controls or shuts off water flow in a PP-R line.
Hi-Therm PP-R inline valve - manually controls or shuts off water flow in a PP-R line.
| Parameter | Value |
|---|---|
| Product type | PP-R inline valve |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20, 25, 32 mm |
| System use | manual shut-off or regulation in PP-R water and heating lines |
| Construction | PP-R valve body with shut-off/regulation mechanism |
| Working medium | cold water, hot water and water-based heating medium |
| Application | manually controls or shuts off water flow in a PP-R line. |
| Connection / installation | socket fusion welding into PP-R line; manual shut-off/regulation element |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

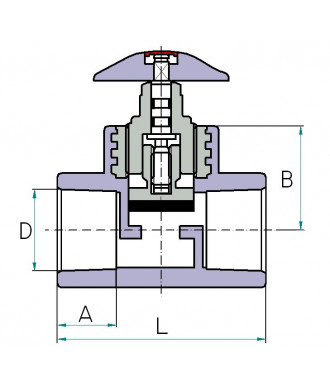

| Ø (D) [mm] | A [mm] | B [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20 | 14,5 | 25,0 | 63,8 | 0,129 | 1 | 80 | H301020 |
| 25 | 16,0 | 30,0 | 71,3 | 0,191 | 1 | 55 | H301025 |
| 32 | 18,1 | 34,0 | 90,0 | 0,317 | 1 | 32 | H301032 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
