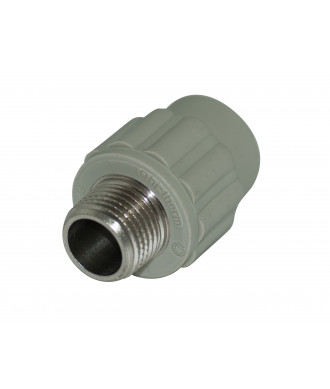

Hi-Therm PP-R male threaded adaptor transitions from PP-R pipe to a male metal thread.
Hi-Therm PP-R male threaded adaptor - transitions from PP-R pipe to a male metal thread.
| Parameter | Value |
|---|---|
| Product type | PP-R male threaded adaptor |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 20x3/4", 25x1/2", 25x3/4", 32x1/2", 32x3/4", 32x1", 40x5/4", 50x6/4", 63x2" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | transitions from PP-R pipe to a male metal thread. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

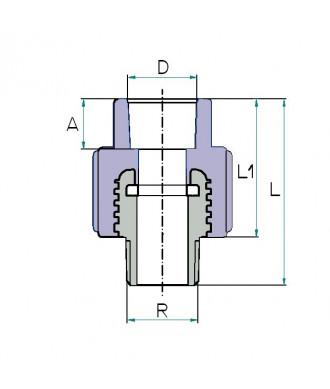

| Ø (D×G) [mm] | A [mm] | L [mm] | L1 [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20x1/2" | 14,5 | 54 | 38 | 0,049 | 20 | 100 | H20102020 |
| 20x3/4" | 14,5 | 59 | 43 | 0,057 | 20 | 100 | H20102025 |
| 25x1/2" | 16,0 | 57 | 43 | 0,051 | 20 | 100 | H20102520 |
| 25x3/4" | 16,0 | 57 | 41 | 0,084 | 10 | 100 | H20102525 |
| 32x1/2" | 18,1 | 58 | 42 | 0,066 | 10 | 100 | H20103220 |
| 32x3/4" | 18,1 | 60 | 45 | 0,085 | 10 | 100 | H20103225 |
| 32x1" | 18,1 | 67 | 50 | 0,134 | 5 | 50 | H20103232 |
| 40x5/4" | 20,5 | 79 | 50 | 0,262 | 5 | 25 | H20104040 |
| 50x6/4" | 23,5 | 86 | 55 | 0,468 | 5 | 10 | H20105050 |
| 63x2" | 27,4 | 95 | 59 | 0,734 | 5 | 10 | H20106363 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
