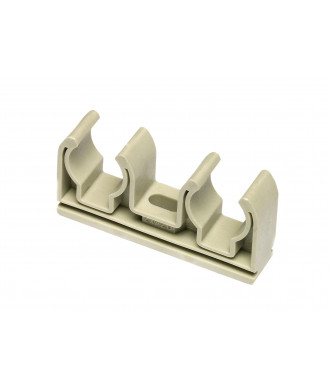

Hi-Therm PP-R pipe clip / double pipe clip fixes PP-R pipes to the base surface and keeps the route spacing tidy.
Hi-Therm PP-R pipe clip / double pipe clip - fixes PP-R pipes to the base surface and keeps the route spacing tidy.
| Parameter | Value |
|---|---|
| Product type | PP-R pipe clip / double pipe clip |
| Material | PP-R |
| Size / diameter | 20, 25, 32, 40, 50, 63, 2x20, 2x25 mm |
| System use | fixing and route organisation for PP-R pipes |
| Construction | single or double PP-R pipe clip |
| Working medium | cold water, hot water and water-based heating medium |
| Application | fixes PP-R pipes to the base surface and keeps the route spacing tidy. |
| Connection / installation | socket fusion welding with PP-R pipe |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |
| Ø (D) [mm] | Version | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|
| 20 | Clamp | 0,005 | 50 | 500 | U500020 |
| 25 | Clamp | 0,007 | 50 | 500 | U500025 |
| 32 | Clamp | 0,009 | 1 | 300 | U500032 |
| 40 | Clamp | 0,018 | 1 | 200 | V500040 |
| 50 | Clamp | 0,034 | 20 | 100 | V500050 |
| 63 | Clamp | 0,047 | 20 | 100 | V500063 |
| 2x20 | Double clamp | 0,017 | 1 | 1 | V501020 |
| 2x25 | Double clamp | 0,023 | 1 | 1 | V501025 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
