Hi-Therm PP-R reducing tee
Photo: Hi-Therm PP-R reducing tee Photo: Hi-Therm PP-R reducing tee
  • Photo: Hi-Therm PP-R reducing tee
  • Photo: Hi-Therm PP-R reducing tee

Hi-Therm PP-R reducing tee

Hi-Therm PP-R reducing tee creates a reduced branch from the main PP-R pipe route.

  • Available sizes: 25x20x25, 32x20x32, 32x25x32, 40x20x40, 40x25x40, 40x32x40, 50x20x50, 50x25x50, 50x32x50, 50x40x50 ... (15 positions) mm
  • Design: one-piece PP-R moulded fitting
  • Installation: socket fusion welding with PP-R pipe
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R reducing tee
Material
PP-R
Size / diameter
25x20x25, 32x20x32, 32x25x32, 40x20x40, 40x25x40, 40x32x40, 50x20x50, 50x25x50, 50x32x50, 50x40x50 ... (15 positions) mm
System use
joint, turn, branch or transition in PP-R pressure piping
Construction
one-piece PP-R moulded fitting
Working medium
cold water, hot water and water-based heating medium
Application
creates a reduced branch from the main PP-R pipe route.
Connection / installation
socket fusion welding with PP-R pipe
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
25x20x25, 32x20x32, 32x25x32, 40x20x40, 40x25x40, 40x32x40, 50x20x50, 50x25x50, 50x32x50, 50x40x50 ... (15 positions) mm
Warranty
10 years
Article numbers
H1180252025, H1180322032, H1180322532, H1180402040, H1180402540, H1180403240, H1180502050, H1180502550, H1180503250, H1180504050 ... (15 positions)
Weight / packaging
weight 0,028-0,325 kg; package 4-160 pcs

Technical specifications and dimensions

Hi-Therm PP-R reducing tee - creates a reduced branch from the main PP-R pipe route.

ParameterValue
Product typePP-R reducing tee
MaterialPP-R
Size / diameter25x20x25, 32x20x32, 32x25x32, 40x20x40, 40x25x40, 40x32x40, 50x20x50, 50x25x50, 50x32x50, 50x40x50 ... (15 positions) mm
System usejoint, turn, branch or transition in PP-R pressure piping
Constructionone-piece PP-R moulded fitting
Working mediumcold water, hot water and water-based heating medium
Applicationcreates a reduced branch from the main PP-R pipe route.
Connection / installationsocket fusion welding with PP-R pipe
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

Sizes and article numbers

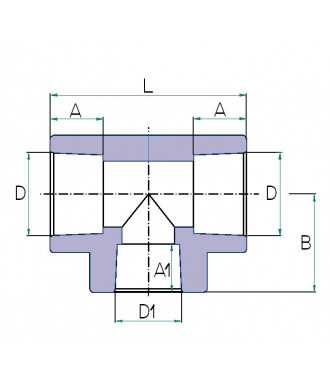

Ø (D1×D) [mm]A [mm]A1 [mm]B [mm]L [mm]Weight [kg]Package I [pcs]Package II [pcs]Article
25x20x2514,516,029,5570,02850160H1180252025
32x20x3214,518,135,0680,04150100H1180322032
32x25x3216,018,135,0700,0472080H1180322532
40x20x4014,520,539,5660,0641060H1180402040
40x25x4016,020,541,5680,0691060H1180402540
40x32x4018,120,541,5830,1101060H1180403240
50x20x5014,523,544710,1301040H1180502050
50x25x5016,023,546750,1381040H1180502550
50x32x5018,123,547,5860,152636H1180503250
50x40x5020,523,547,5940,171636H1180504050
63x20x6327,414,547,7960,085636H1180632063
63x25x6327,416,049,9960,112636H1180632563
63x32x6318,127,451,5960,225424H1180633263
63x40x6320,527,453,01100,300420H1180634063
63x50x6323,527,456,51220,325420H1180635063

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
