Hi-Therm PP-R straight radiator valve connects a radiator to a PP-R heating line in a straight layout.
Hi-Therm PP-R straight radiator valve - connects a radiator to a PP-R heating line in a straight layout.
| Parameter | Value |
|---|---|
| Product type | PP-R straight radiator valve |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | Standard, Standard, Anti-leak, Anti-leak |
| System use | radiator connection in PP-R heating systems |
| Construction | PP-R radiator valve with manual control element |
| Working medium | cold water, hot water and water-based heating medium |
| Application | connects a radiator to a PP-R heating line in a straight layout. |
| Connection / installation | socket fusion welding into PP-R line; manual shut-off/regulation element |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

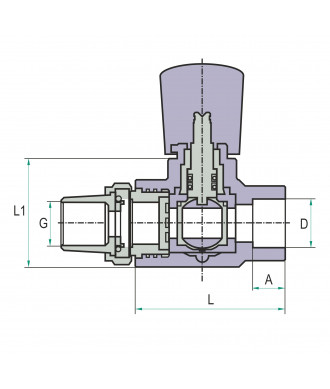

| Version | Ø (D×G) [mm] | A [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| Standard | 20x1/2" | 15,3 | 60,0 | 0,188 | 1 | 108 | H303020 |
| Standard | 25x3/4" | 18,0 | 65,0 | 0,227 | 1 | 90 | H303025 |
| Anti-leak | 20x1/2" | 15,3 | 60,0 | 0,188 | 1 | 108 | H309020 |
| Anti-leak | 25x3/4" | 18,0 | 65,0 | 0,227 | 1 | 90 | H309025 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
