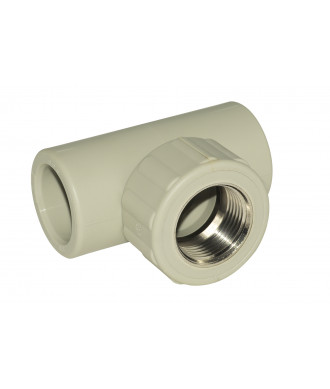

Hi-Therm PP-R tee with female metal thread creates a branch from PP-R pipe to equipment with female metal thread.
Hi-Therm PP-R tee with female metal thread - creates a branch from PP-R pipe to equipment with female metal thread.
| Parameter | Value |
|---|---|
| Product type | PP-R tee with female metal thread |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 25x1/2", 25x3/4", 32x3/4", 32x1" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | creates a branch from PP-R pipe to equipment with female metal thread. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

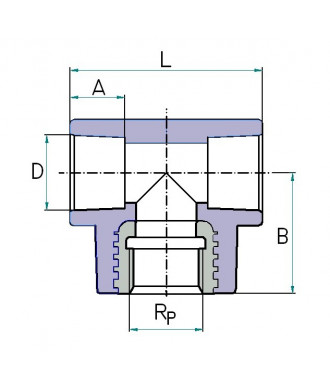

| Ø (D×G) [mm] | A [mm] | B [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20x1/2" | 14,5 | 35 | 66 | 0,068 | 20 | 100 | H2130202020 |
| 25x1/2" | 16,0 | 35 | 70 | 0,075 | 10 | 80 | H2130252025 |
| 25x3/4" | 16,0 | 41 | 76 | 0,116 | 10 | 60 | H2130252525 |
| 32x3/4" | 18,1 | 41 | 86 | 0,134 | 5 | 50 | H2130252532 |
| 32x1" | 18,1 | 50 | 90 | 0,206 | 5 | 40 | H2130323232 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
