Hi-Therm PP-R tee creates a branch from the main PP-R pipe with the same nominal diameter.
Hi-Therm PP-R tee - creates a branch from the main PP-R pipe with the same nominal diameter.
| Parameter | Value |
|---|---|
| Product type | PP-R tee |
| Material | PP-R |
| Size / diameter | 20, 25, 32, 40, 50, 63, 75, 90, 110 mm |
| System use | joint, turn, branch or transition in PP-R pressure piping |
| Construction | one-piece PP-R moulded fitting |
| Working medium | cold water, hot water and water-based heating medium |
| Application | creates a branch from the main PP-R pipe with the same nominal diameter. |
| Connection / installation | socket fusion welding with PP-R pipe |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

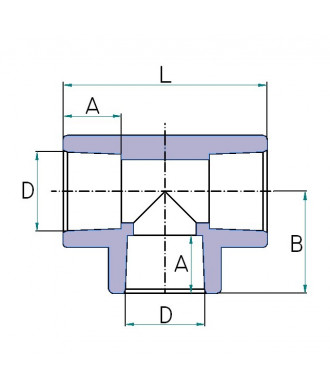

| Ø (D) [mm] | A [mm] | B [mm] | L [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|---|
| 20 | 14,5 | 22,5 | 51 | 0,019 | 50 | 300 | H117020 |
| 25 | 16,0 | 29,5 | 59 | 0,033 | 25 | 150 | H117025 |
| 32 | 18,1 | 35,0 | 70 | 0,055 | 20 | 80 | H117032 |
| 40 | 20,5 | 41,5 | 83 | 0,115 | 5 | 40 | H117040 |
| 50 | 23,5 | 50,0 | 100 | 0,203 | 5 | 30 | H117050 |
| 63 | 27,4 | 61,0 | 122 | 0,333 | 2 | 10 | H117063 |
| 75 | 31,0 | 71,0 | 142 | 0,500 | 1 | 10 | H117075 |
| 90 | 35,5 | 82,0 | 164 | 0,920 | 1 | 5 | H117090 |
| 110 | 41,5 | 99,0 | 198 | 1,540 | 1 | 4 | H117110 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
