Hi-Therm PP-R union coupling with male thread creates a detachable transition from PP-R pipe to male threaded equipment connection.
Hi-Therm PP-R union coupling with male thread - creates a detachable transition from PP-R pipe to male threaded equipment connection.
| Parameter | Value |
|---|---|
| Product type | PP-R union coupling with male thread |
| Material | PP-R body with metal threaded/service element |
| Size / diameter | 20x1/2", 25x3/4", 32x1", 40x1 1/4", 50x1 1/2", 63x2" |
| System use | transition from welded PP-R pipeline to threaded equipment connection |
| Construction | PP-R fitting with metal threaded/service insert |
| Working medium | cold water, hot water and water-based heating medium |
| Application | creates a detachable transition from PP-R pipe to male threaded equipment connection. |
| Connection / installation | socket fusion welding on PP-R side; threaded metal connection on equipment side; detachable union connection |
| Standards | EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208 |
| Warranty | 10 years |

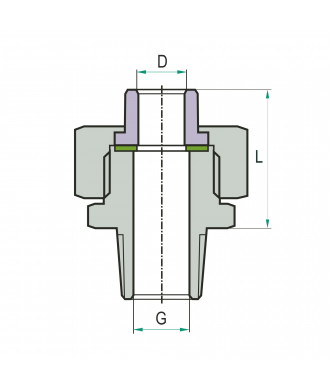

| Ø (D×G) [mm] | L [mm] | L1 [mm] | Weight [kg] | Package I [pcs] | Package II [pcs] | Article |
|---|---|---|---|---|---|---|
| 20x1/2" | 55,5 | 15,5 | 0,118 | 20 | 100 | H4031020 |
| 25x3/4" | 64,0 | 21,0 | 0,208 | 10 | 100 | H4031025 |
| 32x1" | 71,5 | 25,0 | 0,224 | 10 | 60 | H4031032 |
| 40x1 1/4" | 76,0 | 26,0 | 0,325 | 5 | 20 | H4031040 |
| 50x1 1/2" | 79,0 | 27,0 | 0,671 | 5 | 10 | H4031050 |
| 63x2" | 85,0 | 29,0 | 1,110 | 5 | 10 | H4031063 |
I and II indicate packaging levels.
Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
