Hi-Therm PP-R wall elbow with female metal thread

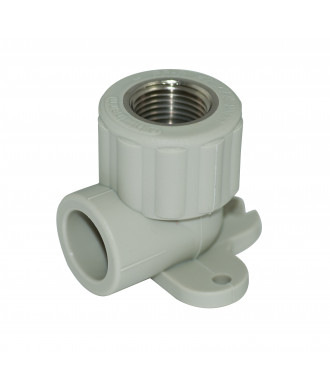

Photo: Hi-Therm PP-R wall elbow with female metal thread Photo: Hi-Therm PP-R wall elbow with female metal thread
  • Photo: Hi-Therm PP-R wall elbow with female metal thread
  • Photo: Hi-Therm PP-R wall elbow with female metal thread

Hi-Therm PP-R wall elbow with female metal thread

Hi-Therm PP-R wall elbow with female metal thread creates a wall outlet point with female metal thread.

  • Available sizes: 20x1/2", 25x1/2", 25x3/4"
  • Design: PP-R wall-mounted fitting with fixed outlet geometry
  • Installation: socket fusion welding on PP-R side; threaded metal connection on equipment side
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R wall elbow with female metal thread
Material
PP-R body with metal threaded/service element
Size / diameter
20x1/2", 25x1/2", 25x3/4"
System use
wall outlet points for sanitary equipment in PP-R systems
Construction
PP-R wall-mounted fitting with fixed outlet geometry
Working medium
cold water, hot water and water-based heating medium
Application
creates a wall outlet point with female metal thread.
Connection / installation
socket fusion welding on PP-R side; threaded metal connection on equipment side
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
20x1/2", 25x1/2", 25x3/4"
Warranty
10 years
Article numbers
H20702020, H20702520, H20702525
Weight / packaging
weight 0,065-0,096 kg; package 10-160 pcs

Technical specifications and dimensions

Hi-Therm PP-R wall elbow with female metal thread - creates a wall outlet point with female metal thread.

ParameterValue
Product typePP-R wall elbow with female metal thread
MaterialPP-R body with metal threaded/service element
Size / diameter20x1/2", 25x1/2", 25x3/4"
System usewall outlet points for sanitary equipment in PP-R systems
ConstructionPP-R wall-mounted fitting with fixed outlet geometry
Working mediumcold water, hot water and water-based heating medium
Applicationcreates a wall outlet point with female metal thread.
Connection / installationsocket fusion welding on PP-R side; threaded metal connection on equipment side
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

Sizes and article numbers

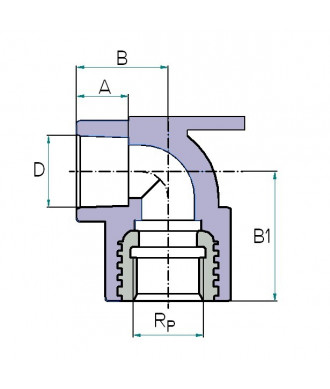

Ø (D×G) [mm]A [mm]B [mm]L [mm]Weight [kg]Package I [pcs]Package II [pcs]Article
20x1/2"14,527340,06510160H20702020
25x1/2"16,028360,09610100H20702520
25x3/4"16,030390,0961050H20702525

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
