Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5)
Photo: Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5) Photo: Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5)
  • Photo: Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5)
  • Photo: Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5)

Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5)

Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5) single-layer PP-R pipe for cold and hot water supply systems.

  • Available sizes: 20x3,4, 25x4,2, 32x5,4, 40x6,7, 50x8,3, 63x10,5, 75x12,5, 90x15,0, 110x18,3 mm
  • Design: single-layer PP-R pipe
  • Installation: socket fusion welding with PP-R fittings
  • Dimensions, article numbers, weight and packaging are listed in the table below.
Watch product video
Pipe and fitting specifications
Product type
PP-R CLASSIC pipe SDR 6 (S 2.5)
Material
PP-R
Size / diameter
20x3,4, 25x4,2, 32x5,4, 40x6,7, 50x8,3, 63x10,5, 75x12,5, 90x15,0, 110x18,3 mm
System use
PN20
SDR / pipe series
SDR 6 (S 2.5)
Construction
single-layer PP-R pipe
Working medium
cold water, hot water and water-based heating medium
Application
single-layer PP-R pipe for cold and hot water supply systems.
Connection / installation
socket fusion welding with PP-R fittings
Standards
EN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Size range
20x3,4, 25x4,2, 32x5,4, 40x6,7, 50x8,3, 63x10,5, 75x12,5, 90x15,0, 110x18,3 mm
Warranty
10 years
Article numbers
U10002020, U10002520, U10003220, U10004020, U10005020, U10006320, U10007520, U10009020, U10011020
Weight / packaging
weight 0,172-5,010 kg/m; package 4-100 m

Technical specifications and dimensions

Hi-Therm PP-R CLASSIC pipe SDR 6 (S 2.5) - single-layer PP-R pipe for cold and hot water supply systems.

ParameterValue
Product typePP-R CLASSIC pipe SDR 6 (S 2.5)
MaterialPP-R
Size / diameter20x3,4, 25x4,2, 32x5,4, 40x6,7, 50x8,3, 63x10,5, 75x12,5, 90x15,0, 110x18,3 mm
System usePN20
SDR / pipe seriesSDR 6 (S 2.5)
Constructionsingle-layer PP-R pipe
Working mediumcold water, hot water and water-based heating medium
Applicationsingle-layer PP-R pipe for cold and hot water supply systems.
Connection / installationsocket fusion welding with PP-R fittings
StandardsEN ISO 15874, DIN 8077/8078, DIN 16962, DVS 2207/2208
Warranty10 years

Sizes and article numbers

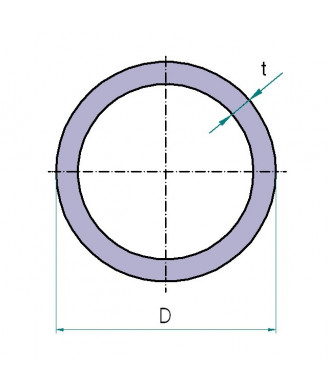

D×t [mm]D [mm]D1 [mm]t [mm]Weight [kg/m]Package [m]Article
20x3,42013,23,40,172100U10002020
25x4,22516,64,20,26660U10002520
32x5,43221,25,40,43440U10003220
40x6,74026,66,70,67132U10004020
50x8,35033,48,31,02420U10005020
63x10,56342,010,51,65012U10006320
75x12,57550,012,52,3408U10007520
90x15,09060,015,03,3604U10009020
110x18,311073,418,35,0104U10011020

I and II indicate packaging levels.

Use compatible Hi-Therm PP-R components and installation parameters suitable for the selected diameter. Final system limits are defined by the pipe, fitting, operating temperature and project pressure.
