Instant electric water heater Hi-Therm JET-MIX 5.5

Hi-Therm JET-MIX 5.5

Instantaneous electric water heater for fast water heating.

Hi-Therm JET-MIX 5.5 is a compact non-pressurized instantaneous water heater with 5.5 kW output for installation above a sink.

The model is suitable for kitchens, summer houses, workshops or other draw-off points where hot water is needed quickly without a storage tank.

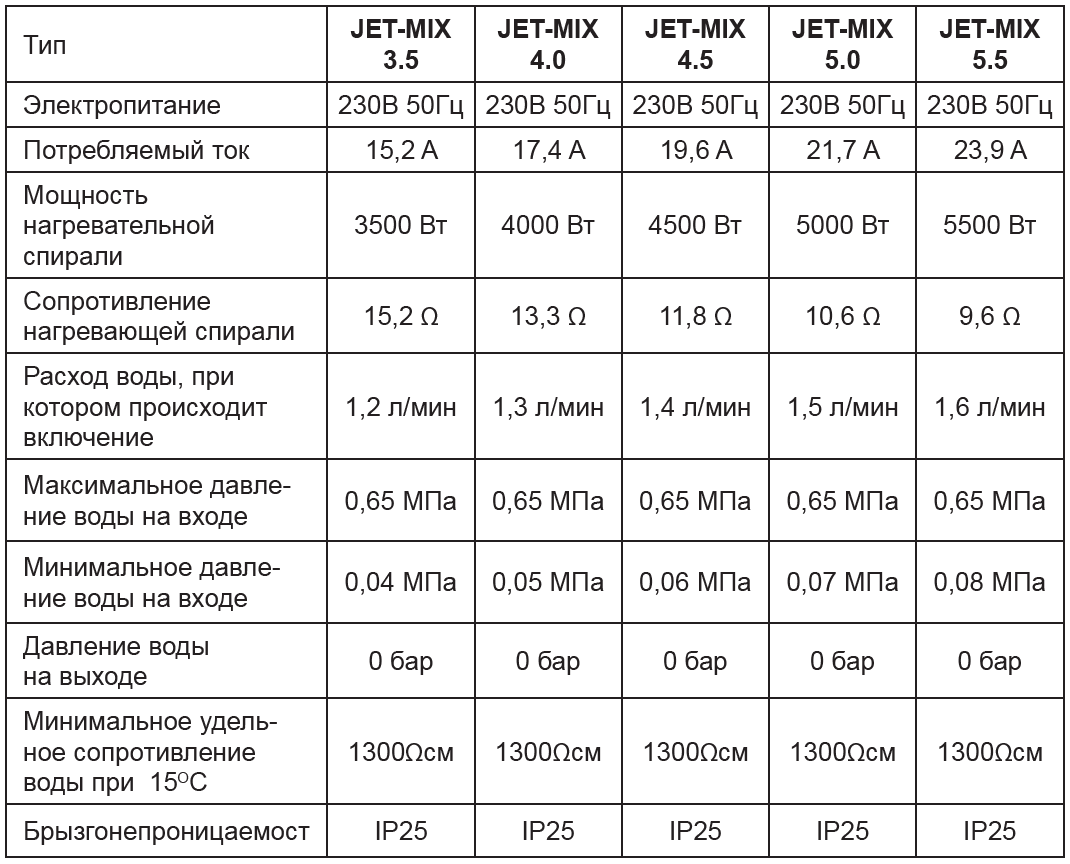

Technical characteristics of the flow heater

Model

JET-MIX 5.5

Heater power, W

5500

Power consumption, A

23,9

Supply voltage, V/Hz

230/50

Water inlet pressure max, bar

6,5

Water inlet pressure min, bar

0,8

Minimum resistivity of water at 15 ° С, Om*cm

1300

Water consumption at which the switch on occurs, l/min

1,6

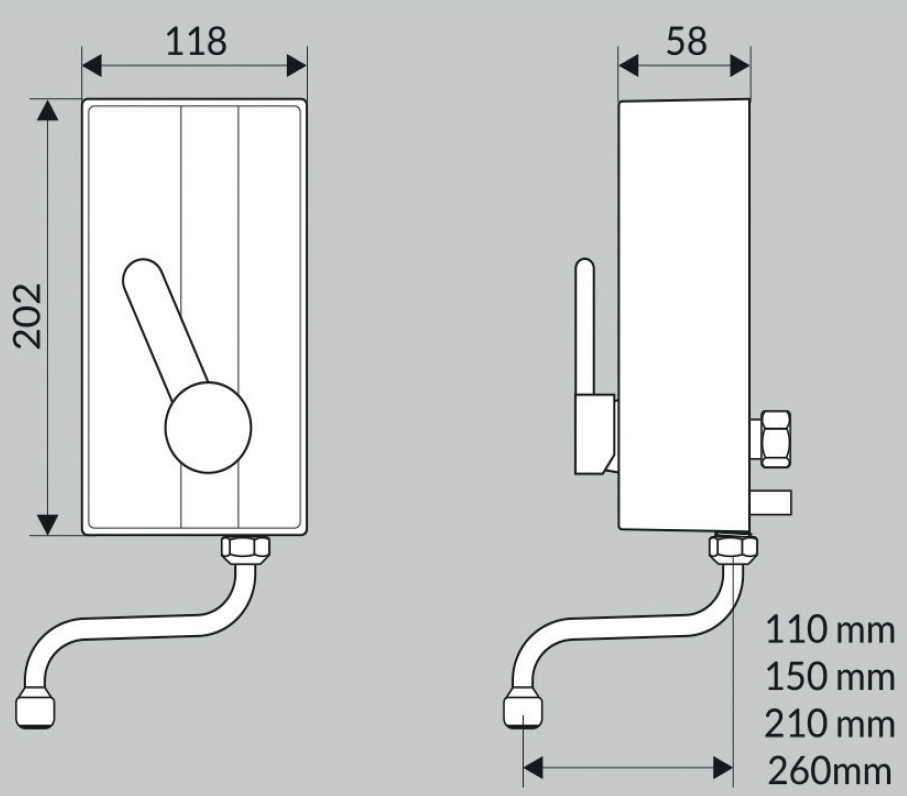

Dimensions (H, W,D), mm

202х118х58

Manufactured

Poland

Warranty, years

Power supply	230/50 V/Hz
Current	23,9 A
Heating coil power	5500 W
Heating coil resistance	9,6 Ω
Activation flow rate	1,6 l/min
Maximum inlet water pressure	6,5 bar (0,65 МПа)
Minimum inlet water pressure	0,8 bar (0,08 МПа)
Dimensions	202х118х58 mm
Minimum water resistivity at 15 °C	1300 Ωcm
Ingress protection	IP25
Production	Poland
Warranty	1 year

Power supply

230/50 V/Hz

Current

23,9 A

Heating coil power

5500 W

Heating coil resistance

9,6 Ω

Activation flow rate

1,6 l/min

Maximum inlet water pressure

6,5 bar (0,65 МПа)
